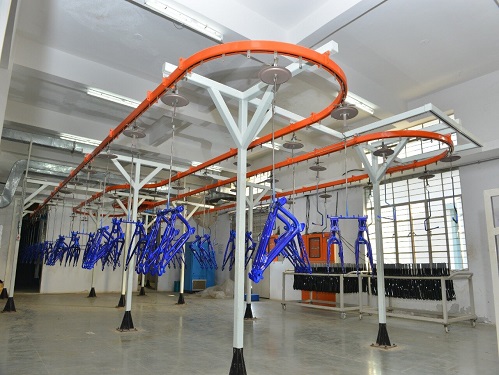

Chain is Bi-Planer which has two load bearings and two guide wheels which move smoothly in straight as well as incurved track.Momentum is provided by sprocket type drive unit comprising of required capacity motor duly cupled to vertical down shaft type gear box.Tensioning arrangement is provided by screw tensioning arrangement. Waight Capacity- Up to 50 K.G.

SUITABLE FOR MEDIUM AND HEAVY LOADS UP TO 50 K.G.WITH LOAD BAR

MULTI-PURPOSE SUCH AS STORAGE,CONVEYING,LOADING/ULOADING ETC.

MOST PROVEN DESIGN FOR LONGER LEANTH.

SYNCHRONIZED MULTI DRIVES PROVIDED FOR LONGER APPLICATIONS.

MINIMUM ROUTINE MAINTENANCE.

ENCLOSED TRACK WITH ENCLOSED TYPE BEARINGS,CAN BE PROVIDED FOR DUSTY ATMOSPHERE

SUITABLE FOR GROUND FLOOR APPLICATIONS.

I-Beam is specially designed for super heavy loads.Its trolley consist of two hardened wheels fitted with sealed bearings which run on I-Beam flange.Trolleys are connected by Drop forged Alloy steel chain (Rivet Less)which guides at bends.The drive is sprocket / Caterpillar (Floating Type) and chain tension is adjusted by Gravity / Screw type take-up unit.

Chain Pitch - 3” , 4” & 6” (X-348, X-458, X-678)

Trolley Pitch - To suit component

Chain Pull -Up to 500 Kgs

Drive - sprocket / Caterpillar (Floating),Rivet type.

Chain - Rivet less chain and all Chain parts are drop forged of alloy steel 8 heat treated for extra strength & durability.

UNIQUE CHAIN DESIGN ,SIMPLE ,ECONOMICAL & MOST RUGGED.

MOST PROVEN DESIGN FOR EXTRA HEAVY LOADS.

MAINTENANCE FREE.

SUITABLE FOR MULTI DRIVE.

USED WITH ATTACHMENT FOR MAXIMUM TROLLEY CAPACITY WITH AMPLE BUILT IN SAFETY FACTOR.

Up to 30 Kg wheels trolleys move on U Shape machine.In straight section double T-Bar is provided.All the wheels are self cornered.T-Bars are provided for full rolling contact in horizontal Bends.Motive Power is provided by a smooth – action caterpillar drive and screw type take up is provided at 180 degree Horizontal turn for the adjustment required for tensioning of conveyor.

Drive - Caterpillar Type.

HIGHLY FLEXIBLE

MOST RUGGED AD VERSATILE

MOST ECONOMICAL

POWER & LABOUR SAVING
